6 Studs 12×2 Inch Trailer Brake Drum For Trailer Cast Iron

Name: 6 Studs 122 Inch Trailer Brake Drum For Trailer Cast Iron
Brand: Airui
Price: 1 USD

Brand Name : Airui

Model Number : AC002

Certification : ISO/TS16949

Place of Origin : Shandong，China

MOQ : Deliberations

Price : Deliberations

Payment Terms : L/C, T/T

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 5-8 work days

Packaging Details : carton, pallet ,plywood case

Size : 12 "

Hub drum body : 5*4.5"/5*4.75"/5*5.0/5*5.5 bolts

Dust cap : O.D. 62.2 mm drive in

Oil seal : I.D. 57.15 mm single clip

bearing : 25580 & 15123

Brake : Mobile house

Contact Now

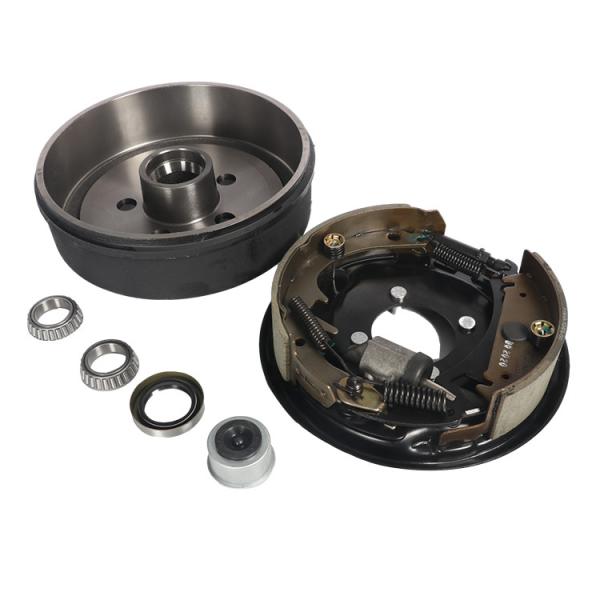

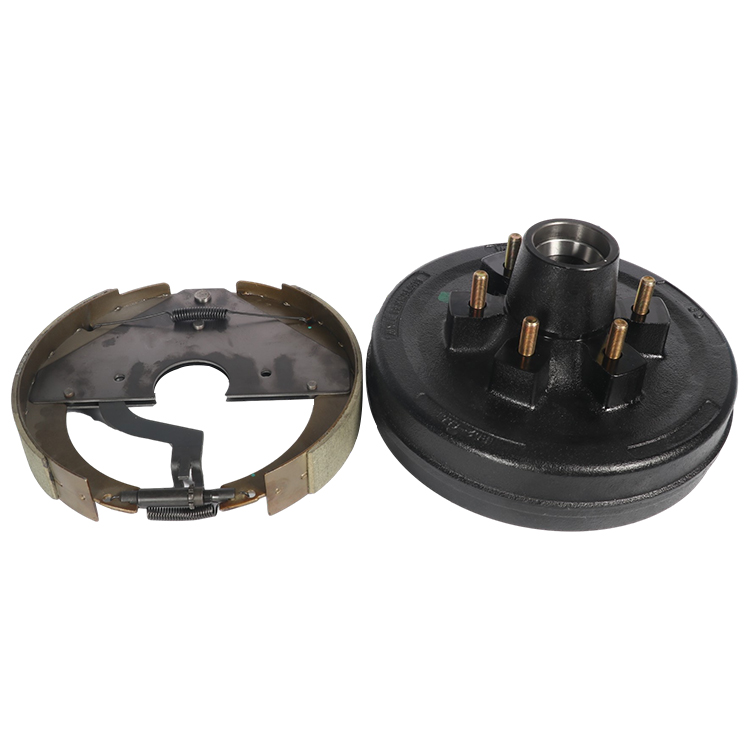

6 Studs 12"×2 Inch Brake Drum With House Mobile Electric Brake Assembly For Trailer

Detailed Specification

1. PCD: 4-4", 5-4. 5", 5-4. 75", 5-5", 5-5. 5", 6-5. 5", 8-6. 5"

2. Bearing:

L-44610, L-68111, LM-67010, 15245, 14276.
L-44643, L-44649, L-68149, LM-67047. LM-67048, 15123, 14125A, 25580.

3. Size: 120mm, 6inch, 9inch, 10inch, 12inch, 12 1/8inch

4. 1/2 inch stud, 7/16

5. with bearing cup pressed

6. supply you with all parts for axles.

Hub Drum	bearing	oil seal	Dust cap	wheel nut
AC00200300C	25580 & 15123	AC00200400 LD. 57.15mm single lip	AC00200601B	AC00500302A
Hub drum body cA/v 6 * 5.5" bolts & 25520115245 bearing race	inner / outer bearing	AT01700302 LD. 48.5mm single lip	O.D. 62.2mm drive in	1/2" cone wheel nut
AC00200300	25580 & 14125A	AC00200400	AC00200601	AC00500302A
Hub drum body cA/v 8 * 6.5" bolts & 25520 /14276 bearing race	inner / outer bearing	I.D. 57.15mm single lip	O.D. 68.9mm drive in	1/2" cone wheel nut

6 Studs 12×2 Inch Trailer Brake Drum For Trailer Cast Iron

FAQ:

1: Could you please make us an offer as soon as possible?

In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.

2: Could you please provide us with the specifications of the products?

Sure, please confirm the product code you need before that.

3: How can you guarantee the quality of your products?

Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.
